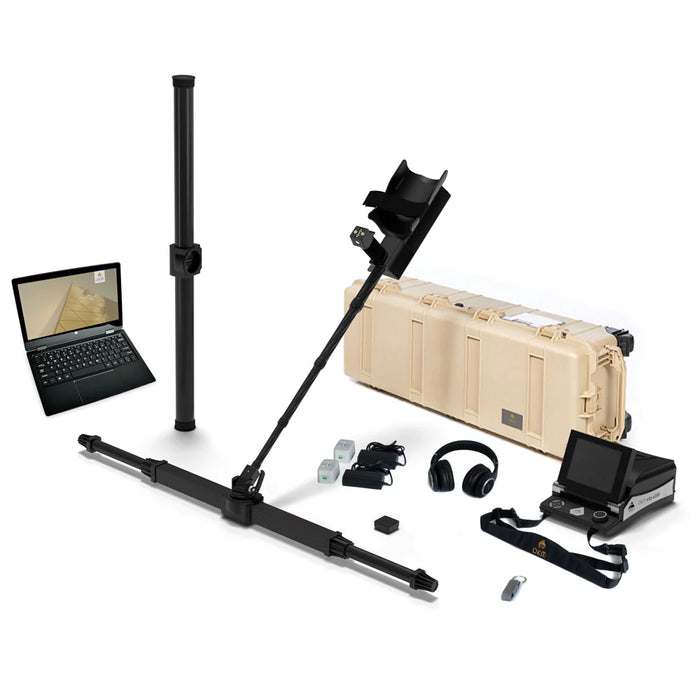

1x USB Flash Drive with OKMVisualizer 3D Studio Standard Edition
1x Waterproof and Shock Resistant Pelican Case
1x Bluetooth Headphones incl. Charging Cable
1x Charger with charging cable
1x Travel Adapter
1x Windows Notebook
1x Quick Start Guide
3D Ground Scanner and Metal Detector for Highest Demands

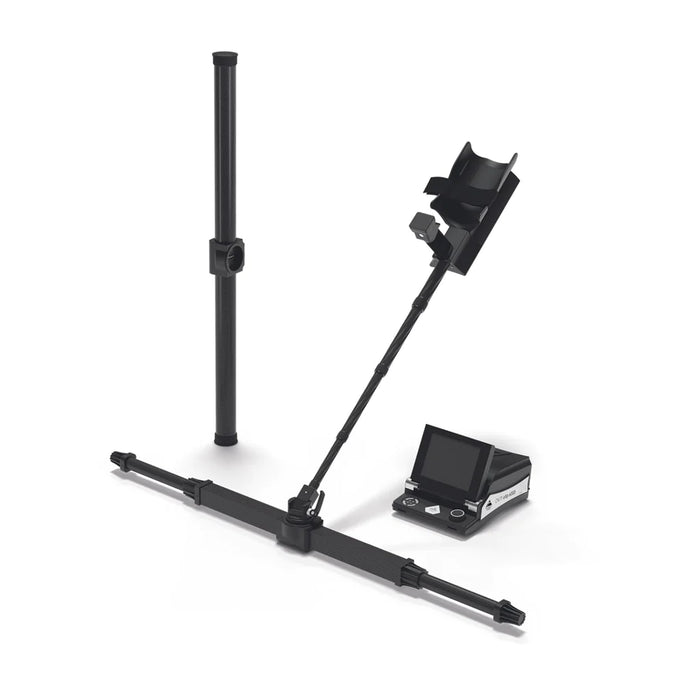

TheEXP 6000 ground scanner and 3D metal detectoris one of OKM’s top of the line detecting tools for treasure hunters, metal detectorists, archaeologists, prospectors, gold seekers, and ground surveyors. This detector is completely wireless and can be controlled via touchscreen, video eyeglasses, or notebook. It is the world’s first 3D ground scanner that utilizes the innovative OKM Telescopic Probe which can be extended to 124 cm (4 ft).
Color Display and Touchscreen
The Control Unit with touch screen and multilingual graphical user interface (GUI) is very easy to use. Different layouts and automatic brightness control allow the user to efficiently operate the detector even in varying ambient light conditions.
Height-adjustable Telescopic Rod
The Telescopic Rod can be adjusted to the user's body size in just a few simple steps. Its armrest is equipped with additional pads for more ergonomics during the treasure hunt. At the lower end, the probes are quickly and easily mounted via a magnetic connector.
Exchangeable Probes for Various Purposes
Like many high-quality consumer and technical applications, the eXp 6000 probes are made of Carbon. This extremely rigid and light material allows treasure hunters to use the lightweight detector even more easily. Additionally, the probes establish a wireless data connection to the treasure detector to send the scan data directly to the Control Unit.

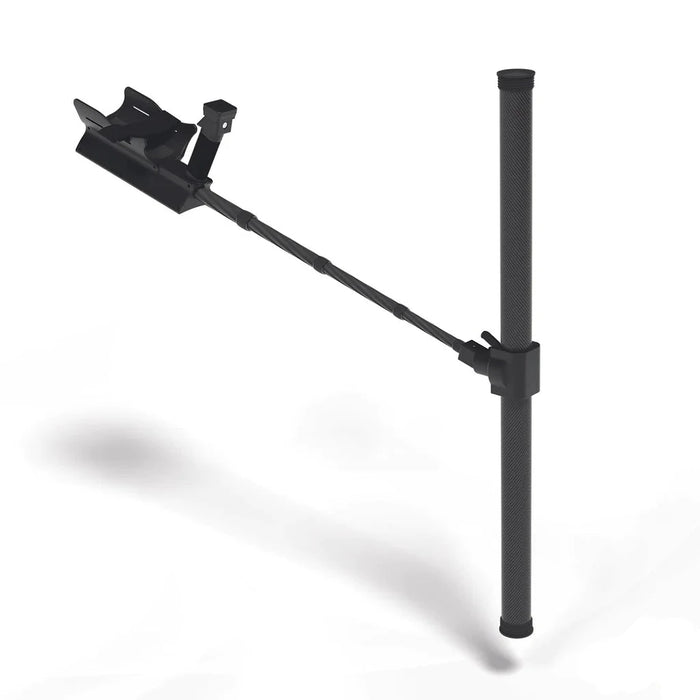

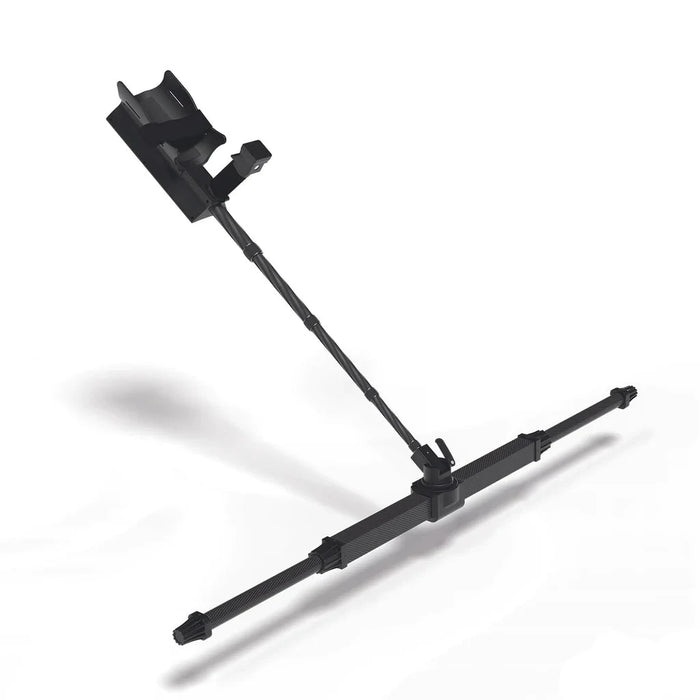

Telescopic Probe: This innovative probe can be extended to 124 cm (4 ft) and is perfectly designed to scan both large areas and narrow areas. As a result, treasure hunters need only one probe and avoid the necessity of carrying additional accessories.
Super Sensor: This specialized ground measuring probe is one of the best ground scanner accessories on the market. By using this antenna, discrimination, and pinpointing of buried objects is possible with ease.
eXp 6000 Exclusive: Orientation Sensor The orientation sensor assists treasure hunters in holding the probe correctly during the measurement. An icon on the screen and a varying acoustic signal warn as soon as the probe is held at the wrong angle. Only a correct orientation of the probe guarantees reliable measurements.
eXp 6000 Operating Modes
As a top-notch detector, the professional 3D ground scanner eXp 6000 offers various operating modes in one device:
3D Ground Scan:Visualization of underground artifacts and cavities in 3D representations.
Mineral Scan:Detection of natural mineralization, visualized in a color-coded graph.
Magnetometer:Localization of ferromagnetic objects.
PinPointer: Identification and localization of detected anomalies.
3D Analysis via Detection Software
The treasure hunter gets a first glimpse of his scan data directly on the screen of the Control Unit during the measuring process. After finishing and saving the measurement, the user receives a graphical representation of the scan field with color-coded targets. This scanned image can be viewed in 2D and 3D as well as rotated and scaled directly on the Control Unit touchscreen.
Thanks to the included 3D softwareVisualizer 3D Studio Standard Edition, the collected measurement data can afterward be analyzed in detail on a computer. In this way, the depth, position, and size of target objects can be determined and the remarkable objects can be supplemented with notes.
Optional Accessories: Android Tablet, Windows Notebook, and Power Pack
Both the Android tablet and the Windows notebook can be used in addition to the Control Unit and allow further users to view or observe the 3D ground surveys while scanning. Moreover, the Windows notebook with installed Visualizer 3D Studio detection software allows for detailed scan image analyses.
The Power Pack (version D/C) provides additional energy for the detector. With the additional Power Pack, the treasure hunter is able to charge the Control Unit and the Telescopic Rod outdoors and even extend the operating time of the detector while scanning the ground.
Specifications:
Control Unit
Dimensions (H x W x D):120 x 210 x 280 mm
Weight:approx. 2.34 kg
Voltage:11.8 - 19 VDC, 50 W maximal
Safety Class:IP40
Operating Time (full charged, 25 °C):approx. 4 hours
Operating Temperature:-10 °C – 50 °C
Display:6.5” Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm
Processing Unit:QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU
Working Memory (RAM):4 GB Kingston HyperX
Data Memory:8 GB SDCard, Class 10
Feedback:acoustic, visual
Storage temperature:-20 °C – 60 °C
Air humidity:5 % – 75 %
Waterproof:No
Data Transmission Technology:WiFi 802.11n a/b/g, MIMO 2x2
Data Transmission Rate:11 Mbps – 54 Mbps
Operation Distance (line of sight to the telescopic rod):max. 30 m
Telescopic Rod
Dimensions (H x W x L):210 x 135 x 680 - 1340 mm
Weight:about 1,76 kg
Voltage:11.8 - 19 VDC, 22 W maximal
Safety Class:IP40
Operating Time (full charged, 25 °C):approx. 5 hours
Operating Temperature:-10 °C – 50 °C
Processing Unit:ARM Cortex M0+ @ 48 MHz
Working Memory (RAM):32 KB
Data Memory:256 KB
Storage temperature:-20 °C – 60 °C
Air humidity:5 % – 75 %
Waterproof:No
Data Transmission Technology:WiFi 802.11n a/b/g
Data Transmission Rate:11 Mbps – 54 Mbps
Operation Distance:(line of sight to control unit): max. 30 m
