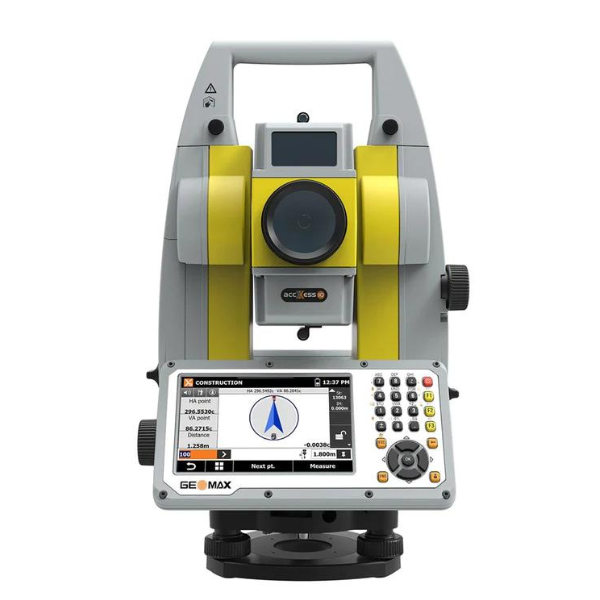

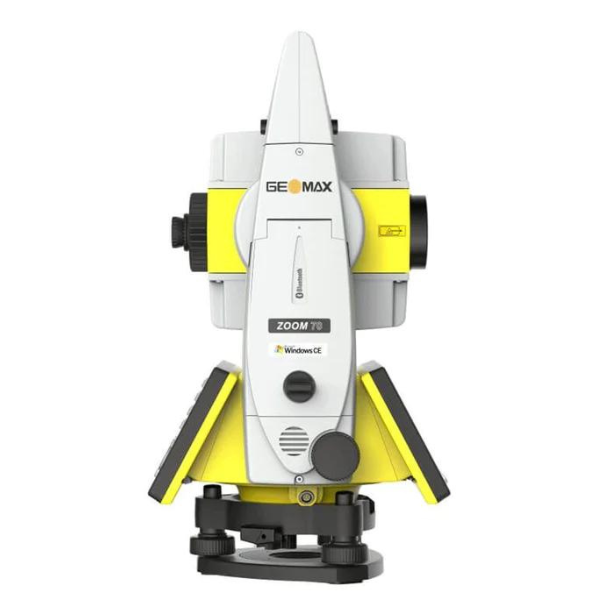

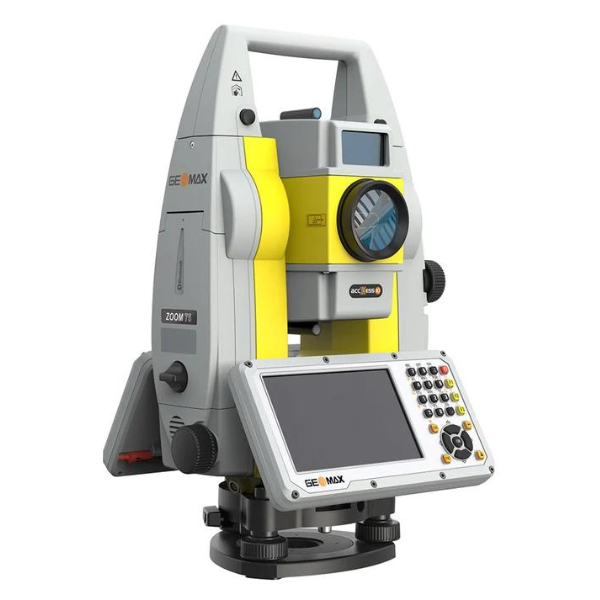

The GeoMax Zoom75 Series Robotic Total Station offers modern features, making it a great choice for both construction professionals and surveying novices. With a long-range Bluetooth handle and GEOTRail function, this one-person total station removes the need for power-consuming active prisms and allows for increased mobility at work.
The Zoom75 features the X-PAD software, available on both Android and Windows. The large 5” touch screen and alphanumeric keys, along with 2 GB internal memory and a removable SD card and USB stick, provide convenience and real-time data management on-site. Thanks to the accXess EDM technology, with an extended measuring range and an extra small laser spot, the Zoom75 allows for accuracy in any distance or condition. Choose from two range options - A5 (1640 feet/500 meters) and A10 (3280 feet/1000 meters) - with four available accuracies.
Key Features
Long-Range Bluetooth Connectivity: Equipped with a long-range Bluetooth handle, the Zoom75 facilitates reliable one-person operations across vast distances.
Innovative GEOTRail Function: Features the advanced GEOTRail prism search, utilizing GNSS positions from your field controller to streamline prism tracking, thereby improving efficiency and reducing the reliance on active prisms.
User-Friendly Operation: With its intuitive design, the Zoom75 caters to both novice surveyors and seasoned professionals. Its compatibility with X-PAD software for Android and Windows improves its operational versatility.
X-PAD Software Integration: The X-PAD's intelligent workflow and user-friendly interface support immediate task execution without extensive training, ensuring a seamless surveying experience.
Real-Time Data Handling: Boasts a large 5-inch display and touchscreen complemented by alphanumeric keys, making data management and file handling on-site straightforward.
Ample Storage and Processing Power: Offers a 2 GB internal memory, expandable via SD card and USB stick options. The high-performing processor is adept at managing large files efficiently.
Enhanced Measuring Range: Incorporates accXess EDM technology to provide precise measurements across extended ranges and in various conditions, featuring two range options: A5 (1640 feet/500 meters) and A10 (3280 feet/1000 meters).
Customizable Accuracy Options: Available in four accuracy levels, the Zoom75's accXess technology provides precise data capture with an extra small laser spot, improving the instrument's versatility.
Specifications
Accuracy
Measuring Method/Reading System
- Absolute, continuous, diametrical
Auto-pointing
Battery/Power
- Battery Life: Up to 8 hours
- Power Source: Removable Li-Ion 4.4 Ah
- Voltage: 7.4V
Display and Keypad
- Backlight: LED
- Keys: 25 keys
- Pixels: 800 x 480
- Touchscreen: Yes
- Type: Full Alphanumeric
Distance Measurement
- EDM Accuracy (Precision): 8x20 mm at 50 m
General
- Auto Shut Off: Yes
- Auto-Tracking Speed: 55 mph at 328 ft (25 m/s at 100 m)
- Dimensions: 8 x 9 x 13 in (203 x 226 x 328 mm)
- Guide Light: NavLight
- Internal Memory: 2 GB
- Protection Class: IP55 dust and waterproof rating
- Software: Windows CE 7.0
- Tribrach: Included
- Warranty: 1-Year Manufacturer's Warranty
- Weight: 12.0 lbs (5.3 kg)
Interface
- Bluetooth: Yes
- Operating System: Windows CE 7.0
- Pin Port: 6-pin
- USB: Yes
Laser Plummet
- Accuracy: 1.5 mm at 1.5 m instrument height
- Class: Class 2
Laser Pointer
Measurement Range
- No Prism: 1640 ft (500 m) / 3280 ft (1000m)
Measurement Time
- Fine: 2.4 sec
- Rapid: 0.8 sec
- Tracking: 0.15
Telescope
Temperature
- Operating: -4° to 122°F (-20° to 50°C)
- Storage: -40° to 158°F (-40° to 70°C)
