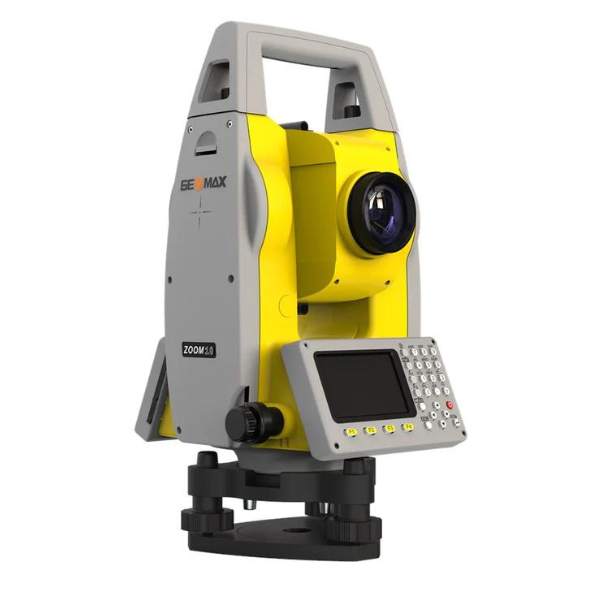

The GeoMax Zoom10 Manual Total Station offers an ideal balance for your entry-level surveying needs. With compatibility for data collection on any Android device through X-PAD software, it reduces the need for additional equipment and streamlines workflow on-site. It offers a dual-axis laser compensation for accurate measurements even in challenging conditions, a 30x magnification scope, and the ability to measure distances up to 350m without a reflector. It has a rugged build that can withstand extreme temperatures and is dust and waterproof, meeting Hexagon's high standards for quality assurance in all GeoMax devices.
Key Features
Android Compatibility: Unique among its peers, the Zoom10 facilitates data collection directly via any Android tablet or phone, negating the need for additional, costly data collection devices.
X-PAD Software Integration: Seamlessly paired with the X-PAD software, the Zoom10 provides importing and exporting data that is both convenient and efficient, enhancing on-site workflow and productivity.
Dual-Axis Laser Compensation: Equipped with dual-axis laser compensation, the Zoom10 provides quick and precise point measurements, even in the most challenging job site conditions.
High Precision Angular Information: Delivers angular information with 2" accuracy, coupled with a 30x magnification scope, offering a broad field of view for comprehensive surveying.
Reflectorless Distance Measurement: Capable of measuring distances up to 350m without a reflector, the Zoom10 extends the range and versatility of surveying tasks it can handle.
Rugged Construction: Designed to withstand the rigors of construction surveying, it operates across temperatures ranging from -20° C to 50° C and boasts an IP54 rating for dust and water resistance.
Hexagon Standard Quality: As part of the GeoMax suite powered by Hexagon, the Zoom10 Manual Total Station is backed by Hexagon's renowned quality assurance, providing reliability and durability in harsh environments.
Specifications
Angle Measurement
Battery/Power
- Battery Life: Up to 10 to 16 hours
- Power Source: Removable Li-Ion 3 Ah / 7.4 V
Display and Keypad
- Keys: 2 sides alphanumeric backlit rubber keyboard
- Type: High resolution backlight black and white display with contrast adjustment / Graphics: 280 x 160 pixels / Character: 6 lines x 25 characters
General
- Dimensions: 7.9" L x 6.9" W x 12.4" H
- Internal Memory: 20,000 points
- Protection Class: IP54 dust and waterproof rating
- Software: Dedicated onboard software
- Weight: 11.7 lbs (5.3 kg)
Interface
- Bluetooth: Yes
- Operating System: Dedicated onboard software
- USB: Yes
Laser Plummet
- Accuracy: 1mm at 1.5m instrument height
- Measurement Range (under fair weather conditions):
- Reflector Sheet: Up to 2624.67 ft. (800 m)
- Single Prism: Up to 9,842.52 ft. (3,000 m)
- Triple Prism: Up to 19685.04 ft. (6,000 m)
Temperature
- Operating: -20° C to 50° C
- Storage: -40° C to 70° C
Tilt Sensor/Compensator
- Range: 1"
- Type: Dual-axis
