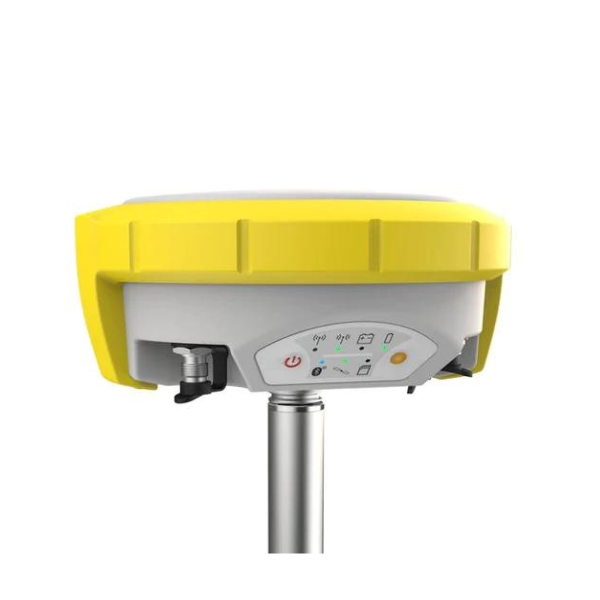

    GeoMax Zenith16 GNSS Receiver

    by GeoMax
    In Stock & Ready To Ship
    Save 10% Save 10%
    Original price $7,856.00
    Original price $7,856.00 - Original price $8,420.00
    Original price $7,856.00
    Current price $7,070.40
    $7,070.40 - $7,578.00
    Current price $7,070.40

    Price Match Guarantee

    Ships in 1-2 Business Days

    Unlimited After-Sales Support

    • Visa
    • Mastercard
    • American Express
    • Discover
    • Diners Club
    • Google Pay
    • Apple Pay

    The GeoMax Zenith16 GNSS Receiver incorporates cutting-edge technology from Hexagon and renowned partnerships with top brands like NovAtel and SATEL, resulting in high-quality positioning capabilities. The GeoMax Q-Lock Pro RTK shortens fixing time, minimizes interference from canopy covers, and prevents inaccuracies caused by multipath signals. The receiver tracks L1, L2, and L2C GPS frequencies at 5Hz positioning rate. This receiver can be paired with your preferred software on your field controller or used with GeoMax X-PAD Ultimate on a dedicated GeoMax field controller.

    The Zenith16 GNSS Receiver has a strong Bluetooth connection and can be linked to a field controller by scanning its QR code. It can be fully configured within the field software or using the Zenith Manager application on Windows and Android. The Zenith Manager is available for free on the Google Play store for mobile devices. The X-PAD Ultimate is GeoMax's dedicated field controller software with an easy-to-use interface, streamlined workflow, and advanced functionalities. Data can be exported via a removable microSD card and processed with X-PAD Fusion software in the office, which consolidates data types from GeoMax sensors and third-party sources like drones. The Zenith16 is also compatible with GeoMax's X-Pole, a unique feature that combines GNSS and TPS measurement modes into one pole. Built for rugged job sites, it is IP68 dustproof and water-resistant, and can withstand extreme temperatures (-40°F to 149°F or -40°C to 65°C).

    Key Features

    Advanced Tracking: The Zenith16 boasts the multi-constellation NovAtel OEM7 receiver with 181 tracking channels, supporting a wide array of signals including GPS, GLONASS, BeiDou, and SBAS, ensuring comprehensive global coverage.

    GeoMax Q-Lock Pro RTK: This high-precision technology significantly reduces time to fix, enhances performance under canopy cover, and minimizes inaccuracies caused by multipath signals, crucial for surveying accuracy.

    Versatile Frequency Tracking: With a 5Hz positioning rate, it efficiently tracks L1, L2, and L2C GPS frequencies, offering versatile solutions for complex surveying tasks.

    Flexible Configuration: The Zenith16 fits effortlessly into existing workflows, compatible with various field software options, including the dedicated GeoMax X-PAD Ultimate on GeoMax field controllers, or any preferred software on personal field devices.

    Strong Connectivity Options: Features robust Bluetooth connectivity and QR code scanning for easy pairing with field controllers, enhancing operational flexibility.

    Zenith Manager for Easy Configuration: Available as a stand-alone application for Windows and Android, allowing for hassle-free device configuration on the go.

    User-Friendly Interface: GeoMax's X-PAD Ultimate software simplifies field operations with an intuitive interface and efficient data management capabilities.

    X-PAD Fusion for Office Processing: Facilitates seamless data consolidation from GeoMax sensors and third-party sources, ensuring comprehensive data analysis and processing.

    Rugged Design: IP68 rated for dust and water resistance, the Zenith16 is built to withstand the harshest environmental conditions, from extreme temperatures to significant impacts.

    Specifications

    Accuracy

    • RTK:
      • Horizontal (Hz): 10 mm + 1 ppm
    • Static:
      • Horizontal (Hz): 5 mm + 0.5 ppm

    Battery/Power

    • Battery Life: 9 hours (static) / 6 hours (rover)
    • Power Source: Removable Li-Ion 2.6 Ah
    • Voltage: 7.4 V

    Communication Interface

    • Bluetooth: Yes
    • Internal UHF: Optional
    • USB: Yes

    Display/Keypad

    • Keys: On/off and Fn Key

    General

    • Dimensions: ø7.8 x 3.8 in (ø198 x 95 mm)
    • Warranty: 1-Year Manufacturer's Warranty
    • Weight: 2.5 lbs (1.13 kg)
    • Operating Temperature: -40°F to 149°F (–40°C to 65°C)

    Tracking Features

    • Antenna: Optional
    • Channels: L1, L2, L2C
    • Satellites: GPS / GLONASS / BeiDou / Galileo / QZSS
