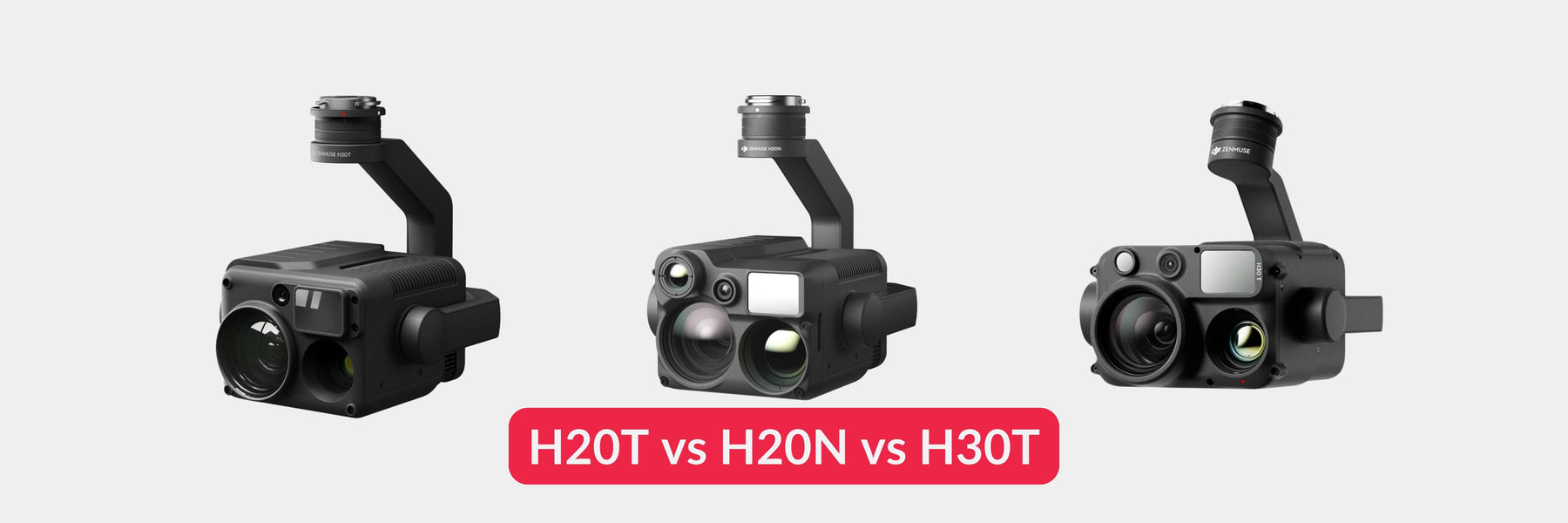

DJI's Imaging Solutions: H20T vs H20N vs H30T for Surveying

In the ever-evolving world of drone technology, DJI has consistently set the bar with their innovative products, particularly in the realm of aerial imaging. The DJI H20T, H20N, and H30T are among the leading payloads designed for professional-grade drones, each offering unique features suited for various applications. This blog post delves into a detailed comparison of these three models, highlighting their strengths and helping you decide which one best meets your surveying needs.

Zoom Capability: Precision from Afar

One of the most notable differences among the H20T, H20N, and H30T is their zoom capabilities. The H30T stands out with a remarkable 34x optical zoom and a maximum digital zoom of 400x. This is more than double the maximum zoom of the H20T, which features a 23x optical zoom and a 200x digital zoom, and significantly higher than the H20N's 20x optical and 128x digital zoom. This superior zoom capability of the H30T makes it ideal for tasks that require detailed inspection from a distance, such as infrastructure monitoring, law enforcement surveillance, and search and rescue operations.

Zoom Comparison Table

Laser Rangefinder: Extending the Reach

The laser rangefinder (LRF) is another area where the H30T excels. With a maximum range of 3000 meters, the H30T’s LRF far surpasses the 1200-meter range of both the H20T and H20N. This extended range enhances target positioning precision and reliability, making it a critical feature for applications that require accurate distance measurements, such as topographic surveys and disaster response missions.

Laser Rangefinder Comparison Table

Thermal Camera Resolution: Seeing Heat Clearly

Thermal imaging is crucial for various applications, from firefighting to wildlife monitoring. The H30T’s thermal camera offers a resolution of 1280x1024 pixels, providing clearer and more detailed thermal images compared to the 640x512 pixels of both the H20T and H20N. This higher resolution allows for better detection of temperature variations and improved accuracy in identifying heat sources, which is essential for effective monitoring and analysis in thermal imaging tasks.

Thermal Camera Comparison Table

Night Vision: Enhanced Low-Light Performance

Night vision capabilities differ significantly across these models. The H30T is equipped with both black-and-white and full-color night vision modes, providing superior performance in low-light conditions. In contrast, the H20T lacks night vision capabilities altogether, while the H20N offers only black-and-white night vision. The H30T’s advanced night vision makes it particularly useful for nighttime surveillance, search and rescue missions, and any operation that extends into the evening or early morning hours.

Night Vision Comparison Table

IP Rating: Durability in Harsh Conditions

When it comes to durability, the H30T again takes the lead with an IP54 rating, offering better protection against dust and water splashes compared to the IP44 rating of the H20T and H20N. This enhanced protection ensures the H30T can withstand more challenging environments, such as construction sites or areas with high dust levels, thereby extending the lifespan of the equipment and ensuring reliable performance in diverse conditions.

IP Rating Comparison Table

Temperature Range for Thermal Imaging: Handling Extreme Heat

The H30T is designed to handle a wider temperature range for thermal imaging, capable of measuring temperatures up to 1600°C with the Infrared Density Filter accessory. This is significantly higher than the 550°C limit of the H20T and H20N. This broader range makes the H30T suitable for applications involving extreme temperatures, such as monitoring industrial furnaces or volcanic activity.

Temperature Range Comparison Table

Smart Features: Enhancing Operational Efficiency

The H30T introduces several new smart features not available in the H20T and H20N. These include Smart Capture, Electronic Dehazing, Pre-Recording, Foreground Stabilization, AI Spot Check, Panorama, Smart Track, High-Resolution Grid Capture, and FlightHub 2. These features streamline data collection and improve the precision of operations, making the H30T an invaluable tool for professional applications that demand high efficiency and accuracy.

Smart Features Comparison Table

Wide Camera Sensor: Capturing More Detail

The H30T’s wide camera sensor is another significant upgrade, featuring a 1/1.3-inch sensor with 48MP, compared to the 1/2.3-inch 12MP sensor of the H20T and the 1/2.7-inch 20MP sensor of the H20N. This larger sensor allows for better image quality, greater detail, and improved performance in low-light conditions, making the H30T the superior choice for high-resolution imaging.

Camera Sensor Comparison Table

Conclusion: Choosing the Right Tool for the Job

When selecting between the DJI H20T, H20N, and H30T, it’s essential to consider the specific requirements of your operations.

• H20T: While still a robust and capable tool, the H20T lacks night vision and offers lower thermal resolution and zoom capabilities compared to the H30T. It’s suitable for general inspection and imaging tasks that do not require advanced night vision or extended thermal capabilities.

• H20N: This model improves on the H20T with the addition of black-and-white night vision and a better optical zoom compared to the H20T, making it a better choice for nighttime operations, albeit with a lower thermal resolution.

• H30T: The clear frontrunner, the H30T combines enhanced zoom, superior thermal resolution, extended laser rangefinder capabilities, comprehensive night vision, a higher IP rating, and numerous smart features. This makes it the ideal choice for a wide range of demanding applications, from search and rescue to industrial inspections and beyond.

In summary, the DJI H30T represents a significant advancement in drone payload technology, offering unparalleled capabilities that meet the needs of modern professional drone operations. Whether you are involved in public safety, industrial inspection, or environmental monitoring, the H30T provides the tools you need to perform with greater precision, efficiency, and reliability.
