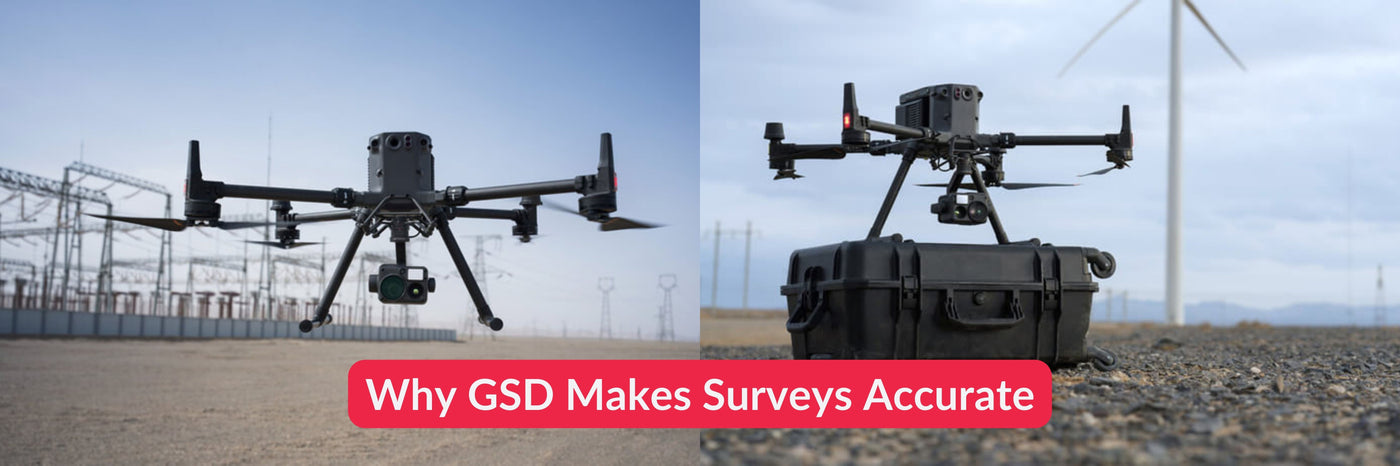

    Why GSD Makes Surveys More Accurate?

    Why GSD Makes Surveys More Accurate?

    When it comes to drone surveying, Ground Sampling Distance (GSD) plays a pivotal role in ensuring the accuracy of our measurements. Simply put, a lower GSD means more detailed and precise imagery, which is essential for tasks like mapping and volumetric analysis. With DJI Enterprise drones like the Matrice 350 RTK and Mavic 3 Enterprise, we can achieve the high level of detail required for professional surveying.

    Flying at higher altitudes increases the GSD, causing each pixel to cover a larger ground area and reducing the image's accuracy. This is particularly problematic in uneven terrains where altitude variations can further affect GSD consistency. By using advanced payloads such as the Zenmuse P1 and Zenmuse H20T, we can minimize these discrepancies and enhance our survey accuracy.

    For those looking to elevate their surveying capabilities, investing in DJI Enterprise drones and compatible payloads is a game-changer. Visit our product page to explore our range of high-precision surveying equipment.

    Key Takeaways

    • Understanding GSD: Ground Sampling Distance (GSD) measures the distance between pixel centers in a drone image, directly impacting survey resolution and accuracy.

    • Higher Altitude, Higher GSD: Flying drones at higher altitudes increases GSD, reducing image detail and overall survey accuracy, which is critical in uneven terrains.

    • Advanced Equipment: Utilizing drones like the DJI Matrice 350 RTK or Mavic 3 Enterprise, coupled with payloads such as the Zenmuse P1 and H20T, can help maintain high accuracy even at higher altitudes.

    • Optimizing Camera Sensors: Superior camera quality and larger sensor sizes, found in payloads like the Zenmuse P1, enhance the impact of GSD on survey precision by capturing more detailed images.

    • Practical Applications: Accurate GSD is crucial for tasks like topographic mapping, volumetric analysis, terrain assessment, and photogrammetry, leading to better decision-making and cost savings.

    • Balancing Survey Parameters: Optimal survey accuracy is achieved by balancing flight altitude and speed to fine-tune GSD, ensuring detailed and precise data collection.

    Understanding Ground Sample Distance (GSD)

    What Is GSD?

    Ground Sample Distance (GSD) is the distance between the center points of each pixel in a digital image captured during drone surveying. In essence, it's the measure of how much ground area each pixel represents. A lower GSD means each pixel covers a smaller area on the ground, resulting in higher resolution and more detail. Conversely, a higher GSD indicates that each pixel covers a larger area, leading to lower resolution and less detailed imagery. This parameter is crucial for achieving precise and accurate survey results.

    GSD directly influences the accuracy of drone surveys. High-resolution images with a low GSD can distinguish smaller features on the ground, providing detailed data essential for tasks such as topographic mapping and volumetric analysis. When flying at higher altitudes, the GSD increases, reducing image detail and the overall accuracy of the survey.

    However, high-quality cameras and advanced drones can mitigate this issue. For example, using the DJI Matrice 350 RTK or the DJI Mavic 3 Enterprise equipped with payloads like the DJI Zenmuse P1 or the DJI Zenmuse H20T ensures that even at higher altitudes, the data captured maintains high accuracy and resolution.

    To ensure the highest level of survey accuracy, it's imperative to select the appropriate equipment. Our inventory includes reliable options such as the DJI Matrice 30, DJI Matrice 30T, DJI Mavic 3 Thermal, DJI Zenmuse H20, and DJI Zenmuse L2. These options cater to various surveying needs, enhancing precision and reliability.

    Explore our range of DJI Enterprise drones and advanced payloads here to elevate your surveying capabilities.

    Factors That Enhance GSD's Impact on Accuracy

    Camera Quality and Sensor Size

    High-quality cameras with large sensors enhance GSD's impact on survey accuracy. When a drone is equipped with advanced payloads like the DJI Zenmuse P1 or the DJI Zenmuse H20T, it captures more light, enabling higher shutter speeds and well-exposed images. This reduces motion blur, resulting in sharper images. The Zenmuse P1, with its full-frame sensor, offers exceptional detail, ideal for high-precision surveying tasks.

    Larger sensors, such as those in our DJI Zenmuse L2, provide better resolution, crucial for accurate measurements. As smaller pixels lead to higher GSD, larger sensors minimize this effect, ensuring detailed and accurate imagery. For any drone surveying endeavor requiring high precision, investing in high-quality sensors is vital.

    Explore our range of advanced payloads to enhance your drone surveying accuracy: Visit our product page.

    Flight Altitude and GSD Calculation

    Flight altitude directly impacts GSD. Lower flight altitudes result in lower GSD, capturing finer details and improving survey accuracy. Using a drone like the DJI Matrice 350 RTK, designed for stability and precision at varying altitudes, ensures optimal data collection.

    Calculating GSD involves understanding the relationship between flight height and sensor specifications. For instance, flying the DJI Matrice 30 at different altitudes while adjusting the GSD setting helps achieve the desired imagery detail. The formula for GSD calculation considers flight height, sensor size, and focal length, providing a clear framework for accurate data collection.

    To achieve the best results, pair your drone with advanced payloads like the DJI Zenmuse H20 or H20T. These combinations allow flexibility in survey planning and ensure the highest data accuracy.

    Optimize your drone surveying now with our advanced DJI drones and payloads: Visit our product page.

    Practical Applications of GSD in Drone Surveys

    Assessing Terrain and Volume Accuracy

    Ground Sample Distance (GSD) plays a pivotal role in achieving high-accuracy terrain and volume assessments using drones. For instance, when measuring stockpiles, a DJI Matrice 350 RTK paired with a Zenmuse P1 camera provides a tight GSD reading around the pile’s surface, minimizing errors in volume calculations. Accuracy improves significantly, translating into better decision-making and cost savings.

    Our DJI Matrice 30 and Mavic 3 Enterprise are excellent choices for more detailed terrain analysis. These drones capture high-resolution images, leading to accurate surface models. With the Matrice 30’s flexibility and Mavic 3 Thermal’s enhanced detection capabilities, professionals can assess terrain variations and changes precisely.

    Enhancing Photogrammetry with Optimal GSD

    Optimal GSD is vital for enhancing photogrammetry in drone surveys. Lower GSD values result in more detailed images, which are essential for creating accurate maps and 3D models. For photogrammetry projects, the Zenmuse H20 and H20T payloads on our DJI Matrice 350 RTK and Matrice 30 offer unparalleled image clarity, crucial for precise survey outputs.

    The DJI Zenmuse L2, available for the Matrice 30, further elevates survey accuracy. It combines laser scanning with photogrammetry, ensuring high-quality data capture even in challenging environments. This advanced payload aids in generating detailed topographic maps and 3D reconstructions with less margin for error.

    Explore our full range of DJI enterprise drones and payloads here for tailored solutions to your surveying needs.

    Optimizing GSD for Maximum Survey Accuracy

    Choosing the Right GSD for Different Survey Needs

    Selecting the right Ground Sampling Distance (GSD) is crucial for achieving high survey accuracy. A lower GSD results in more detailed images, which enhances the precision of tasks like mapping and volumetric analysis. For instance, when using our DJI Matrice 350 RTK or DJI Mavic 3 Enterprise, a lower GSD ensures accurate data for cadastral surveys and construction progress monitoring.

    Our advanced payloads, such as the DJI Zenmuse P1, offer superior resolution, making them ideal for high-detail surveys. For applications requiring thermal imaging, the DJI Mavic 3 Thermal and DJI Zenmuse H20T provide excellent accuracy, leveraging the optimal GSD values for thermal maps and inspections.

    For those interested in optimizing GSD for specific survey needs, take a closer look at our range of DJI Enterprise drones and payloads on our product page.

    Balancing Flight Speed and Altitude

    Balancing flight speed and altitude is key to maintaining optimal GSD. Higher altitude increases the GSD, reducing image resolution, while lower altitude decreases the GSD, enhancing detail. Our DJI Matrice 30 and Matrice 30T drones provide flexible altitude adjustments, allowing surveyors to fine-tune flight parameters for optimal image resolution.

    Flight speed also affects GSD. Slower speeds help capture finer details necessary for precise measurements. When using payloads like the DJI Zenmuse H20 or Zenmuse L2, maintaining an appropriate balance between speed and altitude results in highly accurate survey data.

    For those looking to perfect their surveys with the right balance, our comprehensive range of DJI Enterprise drones and specialized payloads is available on our product page. Explore our offerings to equip yourself with the best tools for accurate and efficient surveying.

    Conclusion

    GSD plays a pivotal role in enhancing the accuracy of our drone surveys. By focusing on factors like camera quality sensor size and flight altitude we can achieve detailed and precise imagery. Investing in advanced payloads such as the DJI Zenmuse P1 H20T and L2 ensures high-resolution data collection. The relationship between flight altitude and sensor specifications is crucial for calculating accurate GSD.

    Using drones like the DJI Matrice 350 RTK and Matrice 30 along with the right payloads provides the flexibility needed for optimal survey planning. Practical applications of GSD in drone surveys highlight its importance in achieving high-accuracy terrain and volume assessments. By selecting the appropriate GSD for our specific survey needs and balancing flight speed and altitude we can maximize survey accuracy and efficiency.

    Frequently Asked Questions

    What is Ground Sample Distance (GSD)?

    GSD, or Ground Sample Distance, refers to the distance between two adjacent pixel centers measured on the ground. It plays a crucial role in drone surveying for accuracy, where a lower GSD means higher detail and precision in the imagery collected.

    How to calculate GSD in drone surveying?

    GSD is calculated by dividing the sensor width by the number of pixels and then multiplying by the ratio of the drone’s flight altitude to the focal length of the camera. The formula is: GSD = (Sensor Width / Image Width) * (Flight Altitude / Focal Length).

    Why is a lower GSD important in drone surveying?

    A lower GSD is essential because it provides more detailed imagery, which is crucial for precise mapping, volumetric analysis, and high-accuracy terrain assessments. Higher detail allows for more accurate measurements and better data quality.

    What factors affect GSD in drone surveying?

    Several factors impact GSD, including camera quality, sensor size, and flight altitude. Better camera sensors and lower altitudes typically result in a lower GSD, enhancing the accuracy of the survey data.

    Drones like the DJI Matrice 350 RTK and Matrice 30, paired with advanced payloads such as the DJI Zenmuse P1 or H20T, are highly recommended for high-precision drone surveying. These models offer flexibility and superior data collection capabilities.

    How can you improve the accuracy of drone surveys?

    Improving survey accuracy can be achieved by using high-quality sensors, flying at lower altitudes, and ensuring proper camera calibration. Investing in advanced drone payloads also enhances resolution, leading to more precise data.

    What is the role of flight altitude in GSD calculation?

    Flight altitude directly affects GSD; a lower altitude results in a lower GSD, leading to more detailed imagery. Conversely, higher flight altitudes increase GSD, reducing the level of detail in the survey data.

    How does GSD contribute to volumetric analysis in surveying?

    A lower GSD provides more detailed images, essential for accurate volumetric analysis. It helps in precisely measuring volumes by ensuring that even small details on the ground are captured accurately, leading to better analysis and decision-making.
